Good Performance Raymond Grinding Mill

    Payment Type: L/C,T/T
    Delivery Time: 10 Days

Basic Info

Type: Raymond Mill

Motor Type: AC Motor

Motor Power: 7.5KW

Rotationl Speed: 20-22r/min

Application: Mine

Materials: Iron

Condition: New

Additional Info

Packaging: as your options

Productivity:  0.65-45 t/h

Brand: Hongke

Transportation: Ocean,Land

Place of Origin: Henan, China

Port: Qingdao,Shanghai,As You Like

Product Description

Raymond Grinding Mill Description

Raymond Grinding Mill is mainly applied to the powder processing of mineral products in industries of metallurgy, construction, chemistry, and mining etc. It can produce powder from more than 280 kinds of non-flammable and non-explosive mineral materials with Mohs hardness below 7 and humidity below 6%, such as barite, limestone, quartz, calcite, granite, porcelain clay, basalt, gypsum etc. The final size is between 613 micron and 440 micron(0.613mm-0.044mm). The whole machine is collocated with Jaw Crusher, elevator, hopper, electromagnetic vibrating feeder, main unit, classifier, collector, cloth deduster and high-pressure blower.

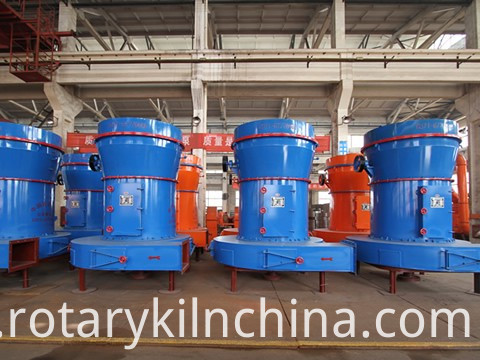

Raymond Grinding Mill

Working principle of Raymond Grinding Mill

The jaw Crusher breaks the bulk materials to the required particle size, the bucket elevator will convey the materials to the storage bin and then the magnetic vibrating feeder will transport the materials to the main body of the Raymond Mill or raymond grinding mill uniformly. When the scraper knife and the grinding roller of raymond grinder rotate at the same time, they raise the materials to the space between the grinder roller and ring, forming a plastic layer. Materials grind each other between in the space between the grinding roll and grinding ring of grinding plant. The ground powder is conveyed to the analytical machine by the draught fan and the fine powder with the required fineness will flow to the cyclone collector along with the air flow. Then they are discharged as the finished particles. The unqualified powder is thrown out of the external wall of the raymond grinding mill and rough powder falls into the grinding chamber under the gravity force. The whole airflow system is a closed circulation under the positive and negative pressure.

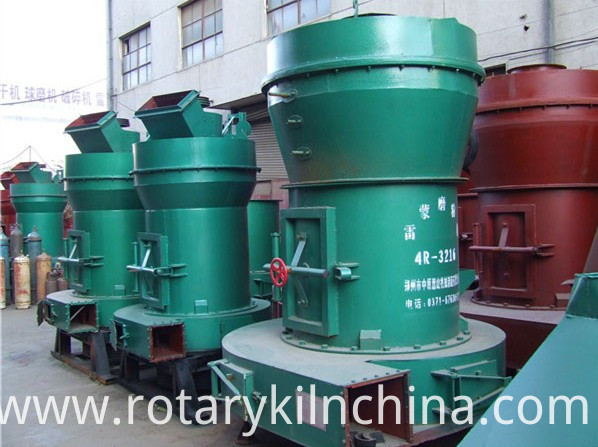

Raymond Grinding Mill

Features of Raymond Grinding Mill

1.High Efficiency
Under the same finished final size and the same motor power, the capacity of the machine is twice as much as jet mill, mixing grinder and Ball Mill, and energy consumption decreased 30%.
2.Long lifecycle of spare parts
The ring and roller are forged by special material with high utilization,the lifetime can reach 2-5 years for grinding calcite.
3.High safety and reliability
As no rolling bearings or screws in grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.
4.High fineness, flexible adjustment
The final fineness of the grinding materials can be adjusted between 325 meshes and 2500 mesh (47-5 micron), and the product fineness can reach D97≤5μm.
5.Environment-friendly

FAQ

1. What advantages does your micro powder machine, stone mill, powder grinding mill have?

Raymond Grinding Mill

The main advantage of our micro powder machine, stone mill, powder grinding mill over other kinds of mills is that you can grind a friable or crystalline material to 5 - 74 microns average particle size and classify in a very narrow particle size range at the same time. There are no moving parts to wear out or generate heat in our mill and no screens to plug or be punctured.

2. Can you guarantee the quality of your micro powder machine, stone mill, powder grinding mill?

---We have passed CE&ISO9001:2008, and our Raymond Grinding Mill have been exported to Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, America, etc.

3.How many years have you been manufacturing the machine?

---8 years. Since the foudation of our company, we have been manufacturing the machine, which updated many times, now the machine runs stable and of high quality
We look forward to your inquiries!

Looking for ideal Raymond Grinding Mill Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Raymond Grinding Mill are quality guaranteed. We are China Origin Factory of Raymond Grinding Mill. If you have any question, please feel free to contact us.
