Energy Saving Double Roller Crusher Price

    Payment Type: L/C,T/T
    Delivery Time: 10 Days

Basic Info

Type: Hammer Crusher

Motor Type: AC Motor

Motor Power: 15kw

Application: Mine

Materials: Limestone

Outlet Size: Other

Inlet Size: Other

Condition: New

Max Feeding Size: 125mm

Weight: 3.8T

RAW MATERIAL: Good Steel

Additional Info

Packaging: as your options

Productivity: 1-61 t/h

Brand: Hongke

Transportation: Ocean,Land

Place of Origin: Henan, China

Certificate: ISO, CE

Port: Qingdao,Shanghai,As You Like

Product Description

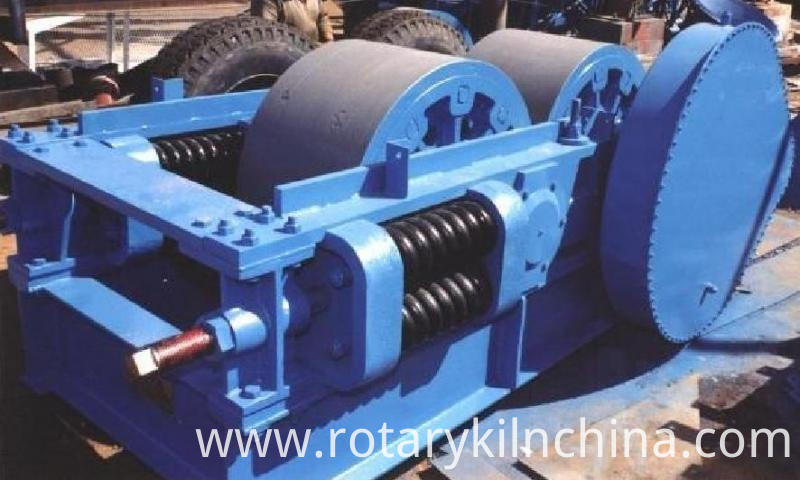

Brief Description of Double Roller Crusher

Double roller Crusher is widely used in the Quarrying and Mining industries, the double roller crusher is the result of utilizing part of the world famous design, enhancing the crushing chamber to result in more crushing and less grinding action, and introducing a hydraulically operated cavity clearance system to clear blockages. The machines are available in model sizes of 1000 mm, 1160 mm, 1300 mm, 1380 mm, 1500 mm, and 1680 mm. All models are available to be fitted with crushing cavities of Extra Fine, Fine, Medium, or Coarse for double roller crusher.

DOUBLE ROLL CRUSHER

Advantages and Characteristics of Double Roller Crusher

These machines feature a larger diameter shaft than a standard machine as well as an independent oil lubrication system, accounting for strong, durable, and reliable operation. The efficient hydraulic jacking system allows for the quick clearance of any tramp iron or other blockage that may occur, thereby greatly reducing down time. Change out times of the concave and mantle are quick, as there are no fillers or bonding agents involved.

Principle of Double Roller Crusher

Double Roller Crusher

The two rollers have wedge or gasket adjusting device, wedge device with the top adjustment bolt, when the adjustment bolt wedge block upward pull up, wedge will activities roller top from fixed wheel, two roller gap becomes larger, the discharge size becomes larger, when the wedge block down, activity roller compression spring (or pressing oil cylinder) under the action of two gap becomes smaller, the discharge size becomes smaller. Gasket device is through increase or decrease the number of gasket thickness to adjust the size of the discharge size, when adding gasket will make two roller wheel gap bigger, when reduce gasket will make two roller wheel clearance decrescent, the discharge size becomes smaller.

Features of Double Roller Crusher

1) High crushing capacity, safe and reliable
2) Roller spacing hydraulic adjustment, roller bearing lubrication
3) tooth profile optimization design, tensile shear selective crushing, discharge material evenly
4) convenient repair, overload protection, sensitive, safe and reliable.
