Coal Drying Continuous Rotary Dryer

    Payment Type: L/C,T/T,D/P
    Min. Order: 1 Bag/Bags
    Delivery Time: 10 Days

Basic Info

Installation: Under The Engineer's Guidance

Type: Rotary Drying Equipment

Additional Info

Packaging:  as your options

Productivity: High

Brand: Hongke

Transportation: Ocean,Land

Place of Origin: China

Port: Qingdao,Shanghai,As You Like

Product Description

Coal drying continuous Rotary Dryer is a high efficiency conducting and continuous drying equipment. Its unique structure and operating principle determine that it has advantages of high heat efficiency, low energy consumption, small occupied area, simple configuration, easy operation and control as well as good operating environment and etc. This rotary dryer can be widely used in drying process in the fields of chemical, pharmaceuticals, agricultural, foodstuff, feed, and other industries.
Industry Coal Slime Drying Machine
There are three major types: normal pressure type, closed type, and vacuum type; and four major models: 1200, 1500, 2200 and 3000; and three kind of material grades, A (carbon steel), B (use stainless steel for material contacted area), and C (use stainless steel for material contacted area, steam pipes, main shaft and supports, and linings for cylinder body and top cover).The drying area of the rotary dryer is 4 to 180㎡. We have produced hundreds of models with auxiliary devices which are available to meet requirements of all customers.

Features of Rotary Coal Slime Dryer

Compact structure.
Reasonable running parameters.
High thermal efficiency.
Simple and Reliable operation.
Low outlet temperature.
Low coal and electricity consumption which is reduced by 10-15%.
Improve the output per machine by over 10-15%.
High Adaptability to the materials.
Low investment which is only half of the same production monocular dryer.

Automation control reduces the operating personnel saving labor resources.

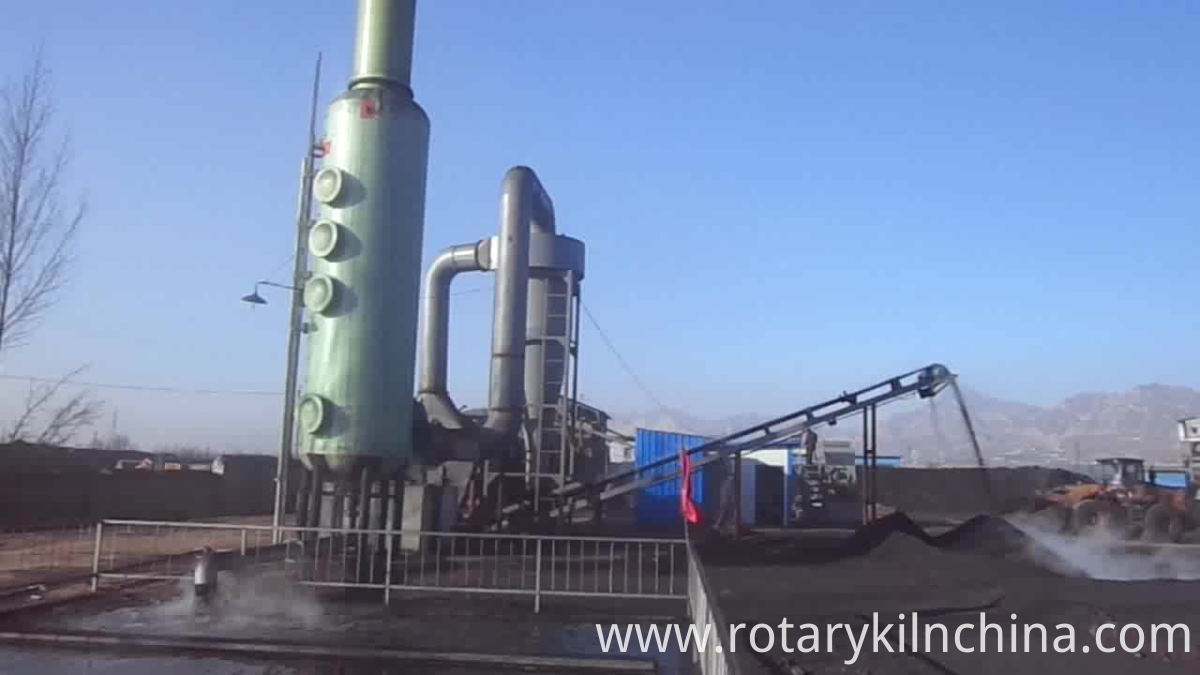

Rotary Coal Slime Dryer

The dust removal device has long service life.

Structure Characteristics of Rotary Coal Slime Dryer

♦ This machine is mainly composed of rotary part, lifting board, transmission part, supporting part and seal ring.
♦ The dryer produced by our company uses new lifting board with many functions of guiding, current sharing and material lifting, and the materials can be comprehensively distributed on the radial sections of the drum dryer and the material curtain is in the thin, average and full state and the materials can fully contact the hot air, thus achieving the aim of making full use of the heat.

Working Characteristics of Rotary Coal Slime Dryer

♦ The heat source of the rotary dryer comes from the combustion device and this dryer uses co-current heating method so that when the materials to be dried go into the cylinder from the feeding box or feeding chute, they are pushed back by the spiral lifting board.

♦ Since the dryer is obliquely installed, the materials flow to the lower end of the machine under the gravity and the rotation of the machine and the materials are repeatedly lifted by the lifting board to the higher end and then spread down constantly so that the materials will form a even curtain inside the cylinder and conduct heat exchange with the hot air inside the cylinder. Since the materials constantly spread and the water contained in them will be dried, thus achieving the aim of drying.

Rotary Coal Slime Dryer

Service Commitment

1. we have our own factory, our own workshop, not rent.
2. we have qualified technical workers, ensure the food dryer machine well-made.
3. we have our own technical team and installation department, we can guarantee overseas services.
4. we have rich stock for check,also can delivery machine as soon as possible.
The faith of our company is to get the market by professional operation,not by low price.We will make every
customer assured, achieved win-win for both. We warmly welcome you to visit our factory have further negotiations and inspection our machine quality.
