Low Consumption High Efficient Chemical Rotary Kilns

    Payment Type: L/C,T/T
    Delivery Time: 10 Days

Basic Info

Model Number: Multi-model

Application: Mineral Operation

Power(W): 380V/50HZ

Life Time: 10-15 Years

Type: Multi-model

Weight: 47.5-278 T

Certification: ISO9001,CE, CE, I9001

Additional Info

Packaging: as your options

Productivity: 0.9-42t/h

Brand: Hongke

Transportation: Ocean,Land

Place of Origin: Henan, China

Port: Qingdao,Shanghai,As You Like

Product Description

Brief Introduction of Chemical Rotary Kiln:

Rotary Kiln is the key equipment in cement ,lime ,magnesium ,FeNi plant,according to the capacity of project,we can help you select different size of rotary kiln,which is usually from 900mm to 5000mm.
Rotary kiln is widely used for many industries like metallurgy, chemical industry, building refractory materials, environmental protection, etc. The Rotary Kiln consists of cylindrical shell, supporting device, supporting device of thrust roller, driving unit, moveable kiln head, sealing device on the tail of kiln, coal dust pipe device, etc. the kiln body has a certain tilt angle with level. The whole kiln body is supported by the roller supporting device, and it is also equipped with thrust roller device to control the up and down movement of the kiln body.

Structure Features of Chemical Rotary Kiln:

The kiln shell is made of rolled steel plates; its structure is optimized by computer software, and features" longitudinal flexible and transverse rigid", which improved the loading of supporting device and stability of refractory lining,

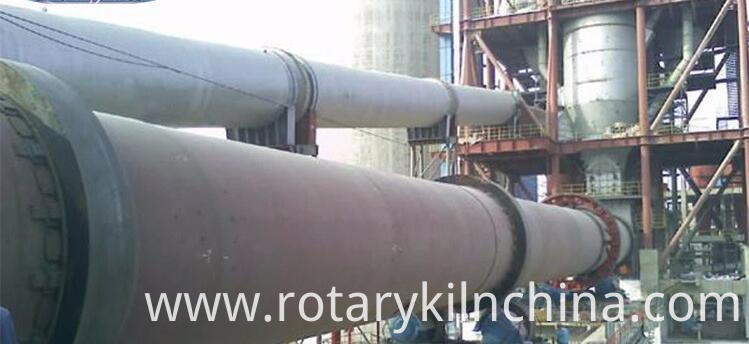

Rotary Kiln
The supporting roller bearings features smaller width over diameter ratio L/D, leading to its higher reliability.

The special high-started torque motor for cement Industry Rotary Kiln is applied for driving system.
The sealing of labyrinth plus spring pressing with asbestos heat isolation layers attached, is applied higher so that reliability and longer service life of sealing are achieved.

Application of Chemical Rotary Kiln:

1. Chemical Rotary kiln is commonly used in the production process of catalytic agent, molecular sieve and zinc oxide, etc. As a result, you can find a rotary kiln in variety of industries, like steel annealing and nonferrous smelting industries, metallurgy and chemistry fields, and building industries, and more.

2. Chemical Rotary kiln system, which is also called a rotary calcine kiln, is a commonly used building material machine. Classifying by material properties, a rotary kiln falls into cement kilns, metallurgy chemical kilns, and lime kilns.

Working Principle of Chemical Rotary Kiln:

1) With a certain slope to the level, the whole kiln body is supported by rollers and fitted with thrust rollers to control up and down movement of the kiln body.

2) Besides main driving unit for driving system, it is also fitted with the auxiliary driving unit so as to ensure the kiln body still can rotating when the main motor is powered off and prevent it from deforming.

3) The kiln head adopts housing type sealing and kiln rear uses axial contact sealing unit so that reliability of sealing could be ensured.

Product Categories : Rotary Kiln

Product Images

  • Low Consumption High Efficient Chemical Rotary Kilns
